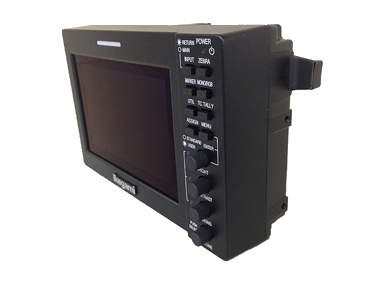

HDF-500 is the 5-inch Viewfinder/Monitor using WVGA LCD panel (800x480) with high contrast, high quality and good angle of view. It offers enough function and the usage at various application.
Feature:
BRIGHT /CONTRAST/PEAKING adjustment
Embedded Audio output with CANNON 3 pin connector
Vectorscope / Waveform display
3G/HD-SDI/SD-SDI Input
HD-SDI output (through output)
HD-SDI/SD-SDI return display
PIP display
HDMI Input
Blue Only function (Red Only and Green only also available)
FCC/RoHS compliant
Dimensions: 190.8(W)x122.3(H)x61.3(D) (mm)
7.51x 4.81x2.41(inch)
Weight: 0.94 (kg) 2.1 (lbs) (monitor only)
