製品仕様 :
製品仕様の記載は、新品時の仕様、付属品となります
在庫品の付属品の状況などは、
状態の項目でご確認ください。
*8ch digital audio processing system
・adaptive controlled processing algorithms
expander, compressor and limiter
・DYNALINK™ dynamic link technology
・channel delay and band filter with dynamic filter mode
・32bit floating point linked dsp engine
processing capacity for 8ch's with 24bit 96kHz audio resolution
・remote operated by PC software
・2 different 8ch inputs configurable by using
C8000 input interface modules (analog or digital)
・2 parallel 8ch outputs possible by using
C8000 output interface modules (analog or digital)
・internal or external sync sources
・2 serial remotes (configurable RS-232, RS-422, RS-485, CAN)
・19", 3RU frame, 360mm depth
状態 :
今回の入荷仕様は、

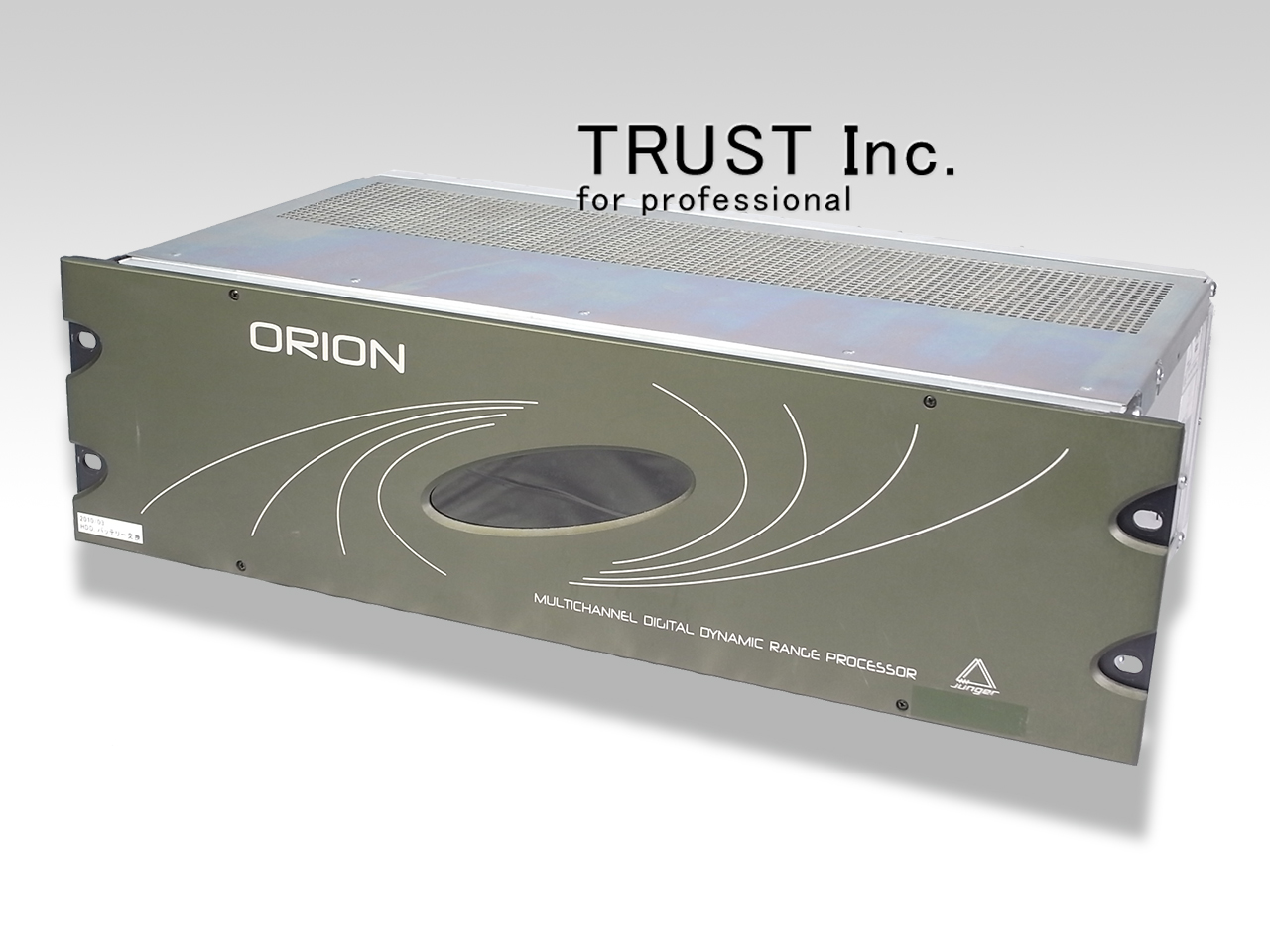

ユンガーオーディオのマルチチャンネル デジタルダイナミック
レンジプロセッサ「オリオン」です。
エクスパンダ / コンプレッサ / リミッタを装備しており、
内蔵PCより設定、運用する構成です。

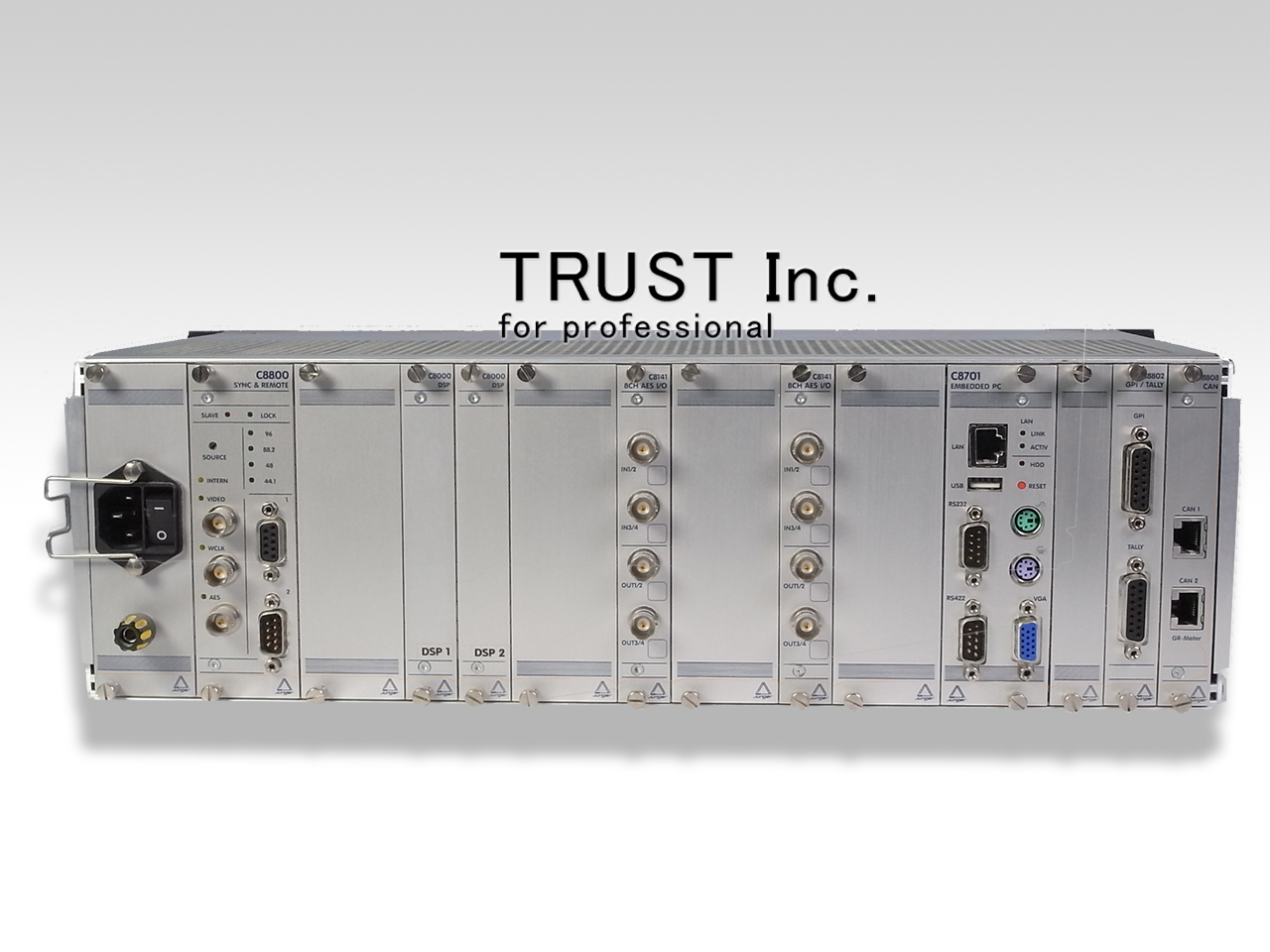

今回の構成は
・C8800 Sync & Remote x1
・C8000 DSP x2
・C8141 4ch digital input/output, AES/EBU x2
・C8701 Embeded PC
・C8802 GPI/Tally
・C8808 CAN
となっております。

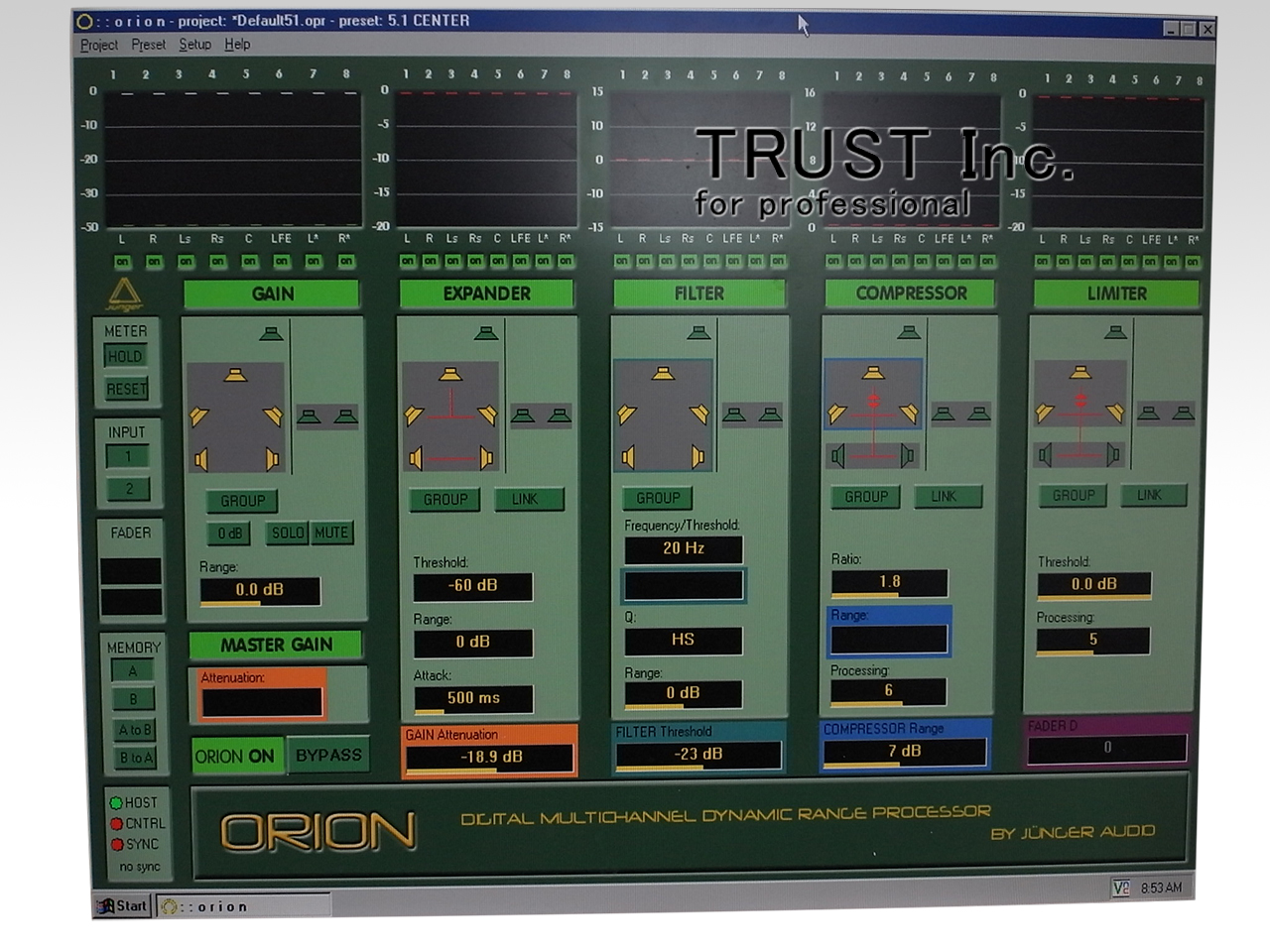

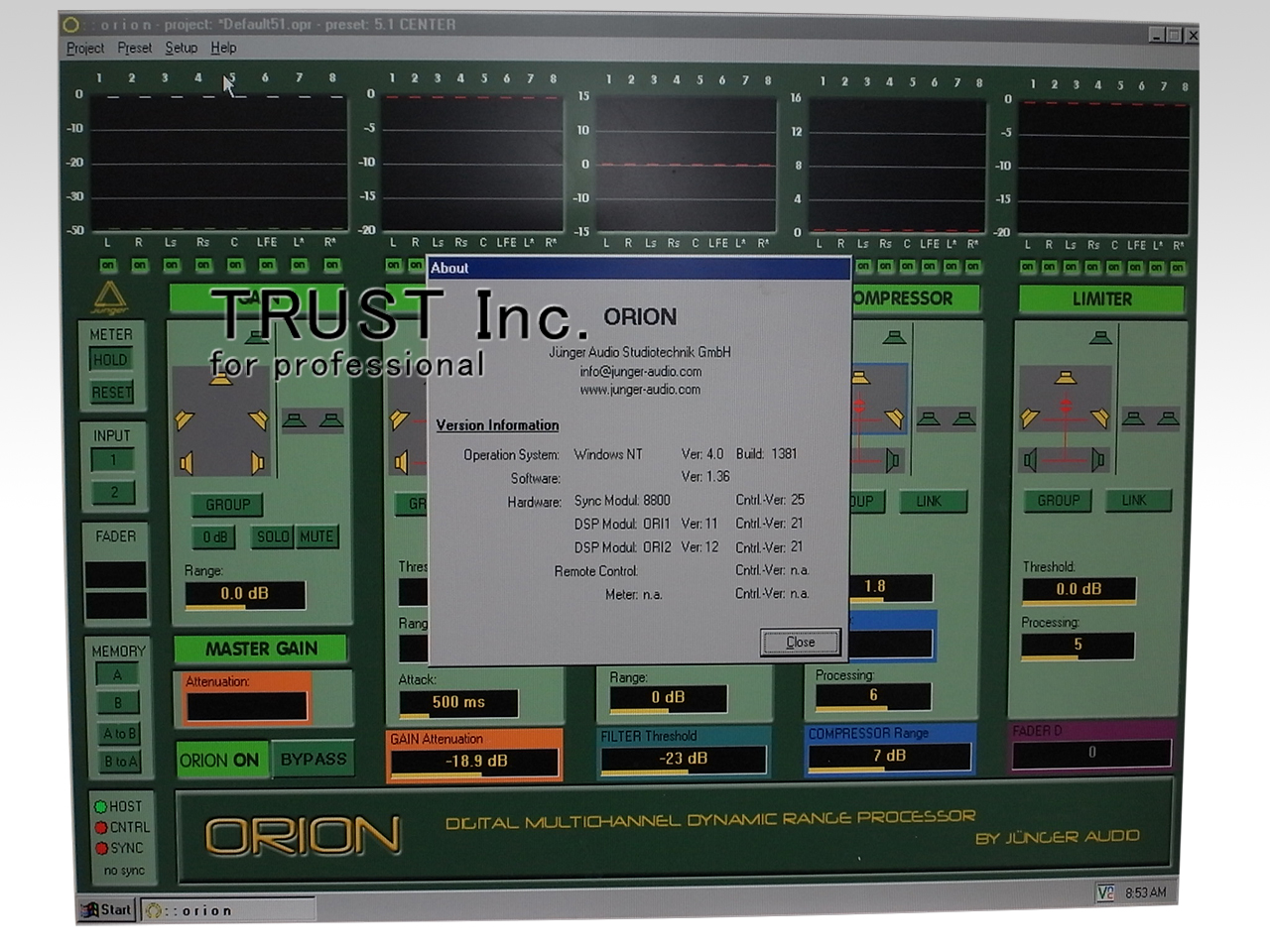

なお設定アプリケーションはC8701 上にあり
Windows NT4 OS上で稼働、特に問題ありません。
内蔵の設定テンプレートには、
・5.1ch & 2ch
・6.1ch
・7.1ch サラウンド
が用意されていますので、お使いの環境に合わせて
設定を編集、構成する事が可能です。
英文マニュアル・設定用テンプレートファイル等は
コントローラ内蔵のHDDに保管されています。
